How to Evaluate Epson's Accelerometer
Accelerate your development with our easy-to-use evaluation tools and software. Quickly assess sensor performance, capture test data, and visualize results-all from your PC.
Evaluation Tools
| Evaluation Boards | Overview | Products | Data Sheet |
|---|---|---|---|
| Evaluation Board M-G32EV041  |
This optional allows you to control our sensor via USB from your PC. It simplifies the initial evaluation process. Since it is powered through USB, no external power supply is required. |
M-A352AD M-A342VD |
 |
| Relay Board M-G32EV051  |
This optional enables control og our sensor from a microcontroller board or similar device. When used in combination with the evaluation board(M-G32EB041), it also helps reduce the impact of vibration on the USB cable during PC connection | |
|
| Magnet Base M-A52EV161  |
This optional tool allows for simple attachment of the sensor to the target machine using a magnet. | M-A552AC1 M-A552AR1 M-A542VR10 |
|
Example Evaluation System Configuration and Tool Combination Table
| Example Evaluation System Configuration | Evaluation Board | Cable | Products |
|---|---|---|---|
PC-Based Logger Software Evaluation |
M-G32EV041 | USB Type A to C
|
M-A352AD M-A342VD |
Reduce the impact of vibration on the USB cable |
M-G32EV041 +M-G32EV051
|
||
Testing with Customer Evaluation Board Interface |
M-G32EV051 | Harness
|
M-A552AC1 M-A552AR1 M-A542VR10 |
Evaluation Software
Vibration Data Logger 1.2
Overview

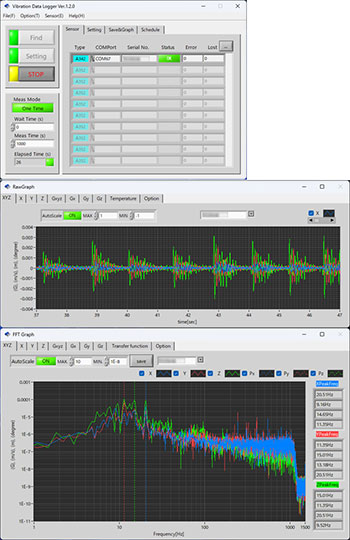

"Vibtation Logger" is an evaluation software that allows you to collect measurements from Epson vibration sensors and check their waveforms on a Windows PC.
Key Features
- Display of measured values in graph form
- Two types of measurement methods;
Normal measurement, Scheduled measurement - Various sensor settings;
FIR filter, Sampling rate, Output type/Physical quantity - Simultaneous measurement of multiple sensors
- Status display; communication errors, A342 error flags
- Sensor settings customization (baud rate change, user-defined filter writing *1, noise floor adjustment *2)
*1) Supported only by M-A370AD10/ M-A352AD10/ M-A552AR10
*2) Supported only by M-A352AD10/ M-A552AR10
Download
Specification
- Version
1.2 *Release on August 20, 2025 - Supported OS
Windows 10 (64bit)
Windows 11 (64bit) - Supported Products
Accelerometers: M-A370AD10/M-A352AD10/M-A552AR10
Vibration sensors: M-A342VD10/ M-A542VR10
Vibration Data Viewer 1.0
Overview

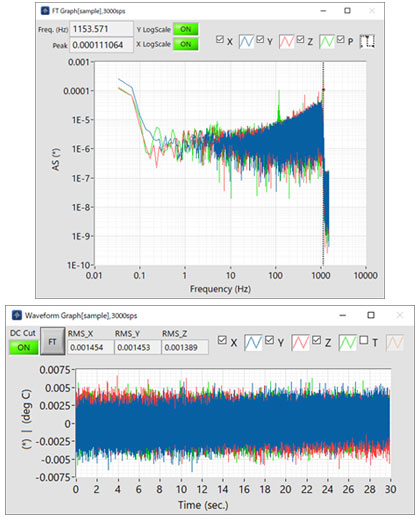

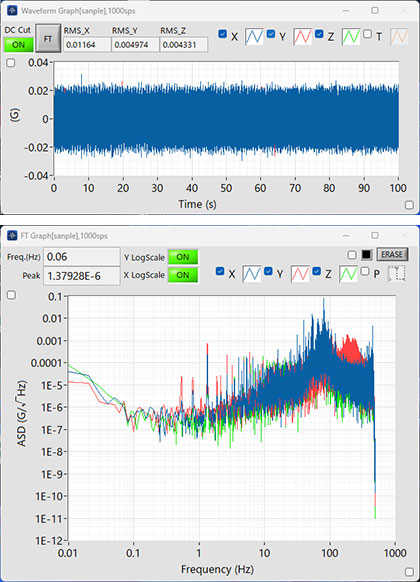

"Vibtation Data Viewer" is an evaluation software for Windows PCs that allows users to view waveform data measured by Epson's "Vibration Logger", which utilizes accelerometers and vibration sensors. By analyzing waveform graphs, RMS values, and Fourier transform results, users can easily identify peak frequencies, making it a valuable tool for pinpointing sources of vibration.
Key Features
- Import of raw waveform data (CSV files)
- Display of waveform graphs and Fourier-transformed graphs, Export of data to CSV files
Specification
- Version
1.0 *Release on Oct 2nd, 2023 - Supported OS
Windows 10 (64bit)
Windows 11 (64bit) - Supported Products
Accelerometers: M-A352AD10/M-A552AR10
Vibration sensors: M-A342VD10/ M-A542VR10
Documents or Inquiry about accelerometer
Reference Design
Support information for designing measurement systems using our sensors is provided. Engineers are assisted in creating the appropriate measurement system for their environment.
The information includes the selection and setup of hardware required for sensor integration, the configuration and operation of measurement-related software, and more. Information for evaluating the performance and characteristics of sensors is also offered.
By utilizing the necessary information for system design, the efficient construction and operation of measurement systems is supported.
| Reference Design | Design Support Information | Selected products |
|---|---|---|
| Vibration measurement system using Raspberry Pi products |
|
|
| Guide to Connecting Waterproof/Dustproof Sensor(s) to Host(s) (USB/LAN) |
|
|
