How to Evaluate Epson's Inertial Measurement Units (IMUs)
Accelerate your development with our easy-to-use evaluation tools and software. Quickly assess sensor performance, capture test data, and visualize results-all from your PC.
Evaluation Tools
| Evaluation Boards | Overview | Data Sheet | |
|---|---|---|---|
| M-G32EV041 |  |
This optional evaluation board allows you to control our sensor via USB from your PC. It simplifies the initial evaluation of the sensor. The device is powered directly through USB, so no external power supply is required. Sensing data output from the IMU is provided via UART. |  |
| M-G32EV031 |  |
This optional evaluation board enables control of our sensor from your system board via pin connections. By properly connecting the pins, you can access sensor output; however, an external power supply is required. The IMU output is available via UART or SPI, selectable through pin configuration. | |
Example Evaluation System Configuration and Tool Combination Table
| Example Evaluation System Configuration | Evaluation Board | Cable | Part Number |
|---|---|---|---|

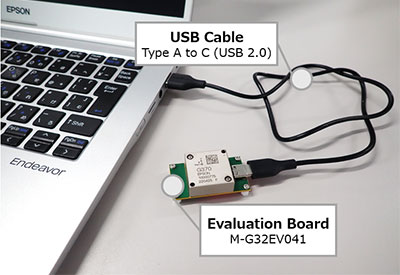

PC-Based Logger Software Evaluation |
M-G32EV041 | USB Type A to C
|
M-G370PDS M-G370PDG M-G370PDF M-G366PDG M-G330PDG |

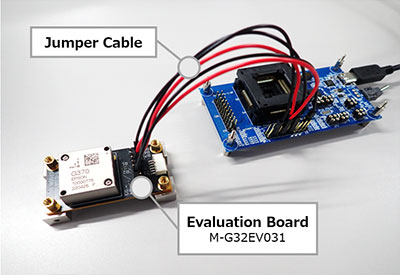

Testing with Customer Evaluation Board Interface |
M-G32EV031 | Jumper Cable
|
M-G370PDT M-G370PDS M-G370PDG M-G370PDF M-G366PDG M-G330PDG |
Software
IMU Logger 3.11
Overview

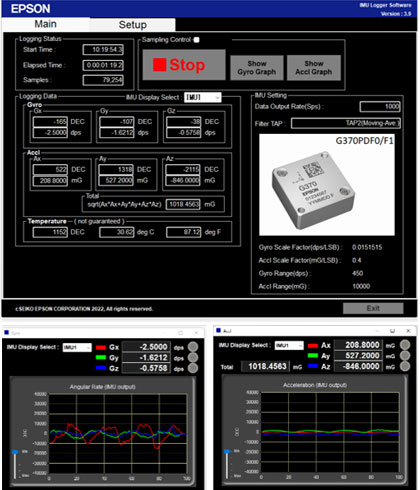

"IMU Logger" is evaluation software that allows you to collect measurements from Epson IMUs and check their waveforms on a Windows PC.
Key Features
- Display of measured values in graph form
- Save measured values as csv format file
- Two types of measurement methods; Normal measurement, Scheduled measurement
- Various sensor settings; Moving average filter/FIR filter, Sampling rate, Output type/Physical quantity
- Display/output of attitude angle information (Limited to G330, G366)
- Simultaneous measurement of multiple sensors
- Status display (display of communication errors)
Specification
- Version
3.11 *Release on July 22nd, 2024 - Supported OS
Windows10 pro (64bit)
Windows11 pro (64bit) - Supported Products
IMU : G330, G366, G370, G570 etc.,
