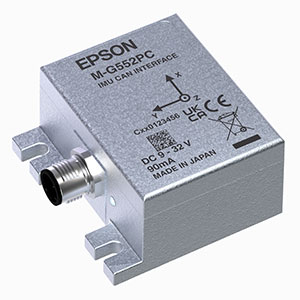

M-G552PC30Inertial Measurement Unit (IMU)
Description
The M-G552PC30 is a standard-model IMU with a rugged metal housing, delivering high stability and accuracy through advanced compensation technologies. It features a CAN interface that can be directly connected to automotive and industrial power systems for host communication. The dust- and water-resistant (IP67) enclosure ensures stable performance even in outdoor environments, enabling reliable, long-term measurement.
Various compensation parameters are stored in the IMU's internal memory and are automatically applied to the output measurement data upon power-up at the application level. In addition, host communication is supported via a CAN interface that can be directly connected to automotive and industrial power systems. This enables easy networking of multiple sensors, allowing inertial motion analysis and control to be implemented in applications with minimal design effort.

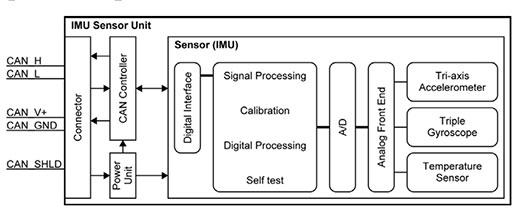

【Block Diagram】
| Size | 65×60×30 [mm] | |
| Weight | 115 [grams] | |
| Gyro Sensor | Range | ±450 [°/s] |
| Bias Instability | 1.2 [°/h] | |
| Angle Random Walk | 0.08 [°/√h] | |
| Initial Error | 360 [°/h] | |
| Accelerometer | Range | ±8/±16 [G] |
| Bias Instability | 24 [uG] | |
| Misalignment | 0.01 [°] | |
| Interface | CAN Interface | |
| Power Consumption | 33 [mA] @ 12V | |
| Power Supply | 12 [V] | |
| Calibration Temperature Range | -30～80 [℃] | |
| Output Data Rate | 1000 [sps] | |
| Attitude Output | Accuracy(Static) | 0.2 [°] |
| Accuracy(Dynamic:100°/s, Max) | 0.2 [°] | |
| Dustproof and Waterproof | IP67 | |
* Unless otherwise noted, all values are Typ.
Application
- Antenna Platform Stabilization
- Camera Gimbals
- Navigation System
- Vibration Control and Stabilization
- Pointing and Tracking System
