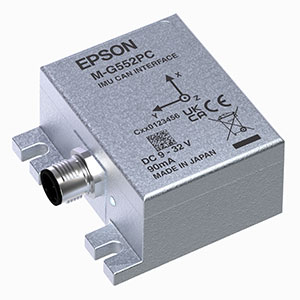

M-G552PC80Inertial Measurement Unit (IMU)

AdvancedDustproof and
WaterproofCAN Interface

Description

The M-G552PC80 is an advanced-performance model IMU with a rugged IP67-rated metal enclosure, delivering high stability and accuracy through advanced compensation technologies. It features a CAN interface that can be directly connected to automotive and industrial control systems for host communication. The dust- and water-resistant (IP67) enclosure provides environmental protection, mechanical robustness, and improved electromagnetic shielding for stable performance even in outdoor environments, enabling reliable, long-term measurement.

Factory calibration parameters including bias, scale factor, axis misalignment, and temperature compensation are stored in non-volatile memory of the IMU and are automatically applied to the output measurement data upon power-on at the application level. It supports CANopen communication for direct integration with industrial controllers, PLCs, and automotive systems. It also supports direct connection to 12 V industrial power systems, reducing external power conversion requirements.This enables easy networking of multiple sensors, allowing inertial motion analysis and control to be implemented in applications with minimal design effort.

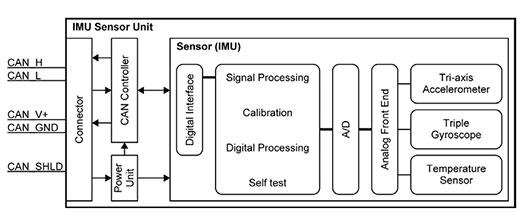

【Block Diagram】
