Epson devices support IoT penetration.
- Connecting a decentralized global world
With the expansion of IoT usage, various radio waves are mixed in the wireless signal paths, and the risk of system malfunction and failure due to EMI (radiated noise) is increasing.
As a solution to EMI caused by oscillators, we provide crystal oscillators (SPXO) that can reduce EMI, contributing to the realization of a connected world through IoT.

Value proposition
IoT Devices / EMI Reduction

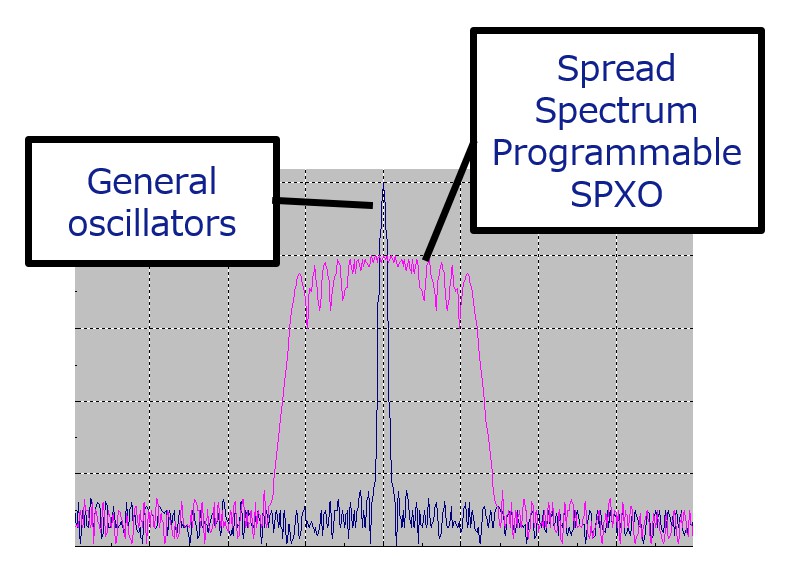

Epson Spread Spectrum Programmable SPXO Summary :
- We provide SPXO that enables EMI reduction by spread spectrum technology
Value proposition :
- Various spread spectrum specifications can be selected based on the customer's design requirements.
- Programmable function enables fast response to frequency changes*1
- Can be used to replace general oscillators without changing the board layout*2
*1: Arbitrary frequency can be programmed up to 6 decimal point accuracy. (Once programming is done, overwriting is not
possible) In case of general oscillators, new crystal designs may be needed for every new frequency required.
*2: Adopts the same footprint as our general oscillators line up of sizes 2.5 x 2.0, 3.2 x 2.5, 5.0 x 3.2, 7.0 x 5.0 mm

In other places like these

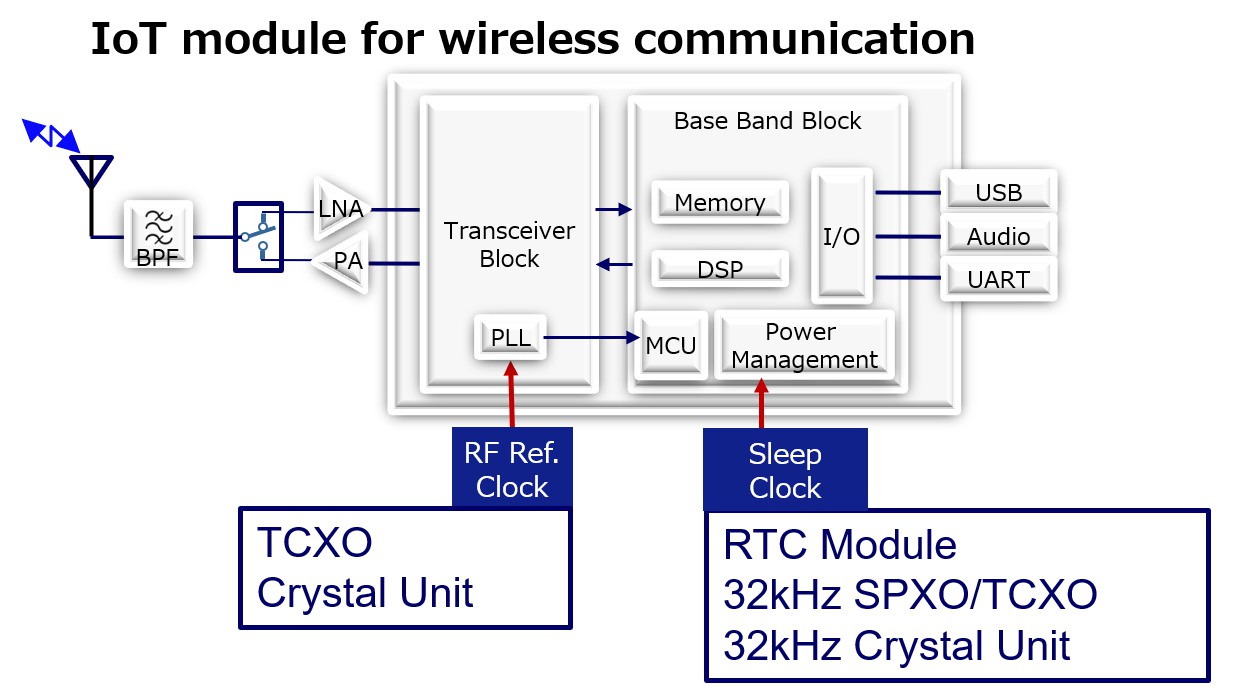

- Other crystal devices also contribute to the expansion of IoT

Products lineup
Overview of Spread Spectrum Programmable XO SG-9101 series Link For details of each product.
2.5 x 2.0 mm: SG-9101CG
3.2 x 2.5 mm: SG-9101CE
5.0 x 3.2 mm: SG-9101CB
7.0 x 5.0 mm: SG-9101CA
2.5 x 2.0 mm: SG-9101CGA (AEC-Q100)
