Security

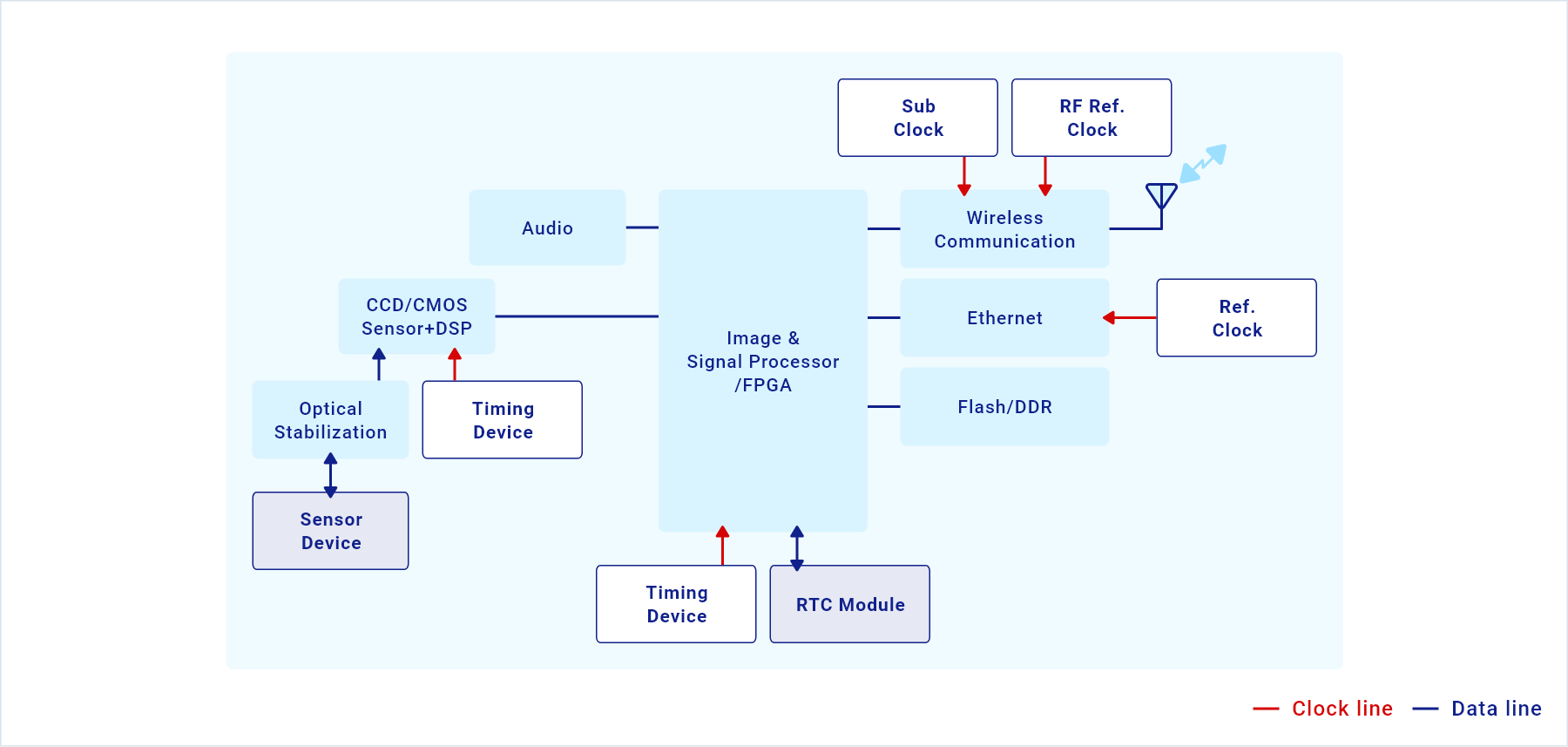

Network Camera
Functional Block Diagram

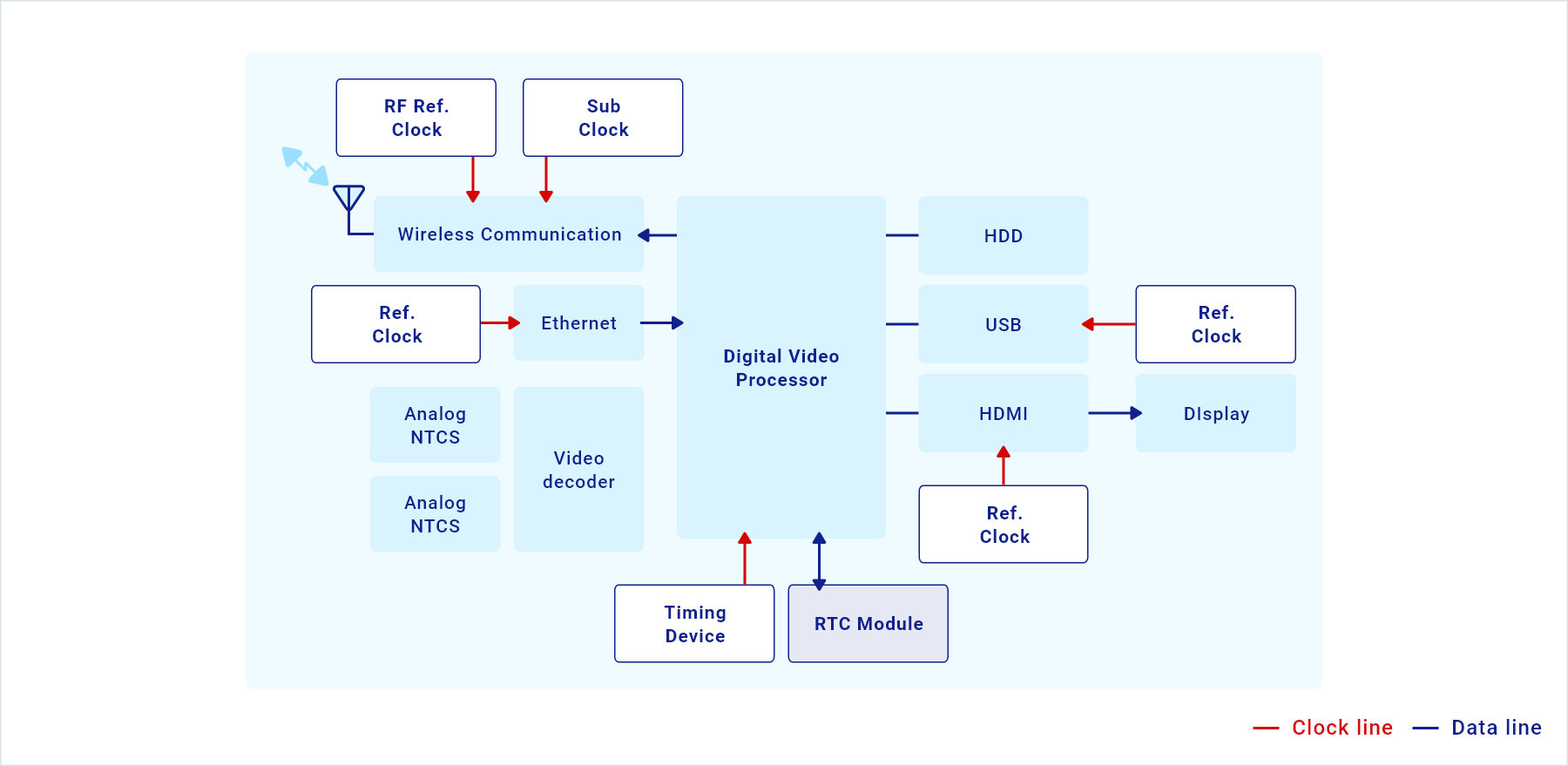

NVR, DVR
Functional Block Diagram
Timing Device, Ref. Clock
Sends a timing signal to keep pace with each function.
Reference signal for transmission frequency.
Crystal Units
Crystal Oscillators
Don't need High Stability or VC*1
*1 VC: Voltage Controlled
* For automotive applications, please select a product that conforms to AEC-Q100 or AEC-Q200.
RF Ref. Clock
Reference signal for Radio frequency.
Crystal Units
* For automotive applications, please select a product that conforms to AEC-Q100 or AEC-Q200.
RTC Module, Sub Clock
Manages the system time. When CPU/MCU in sleep mode, it continues to operate.
Low Frequency (32.768 kHz) clock for reduced current consumption.
Equipped with various functions such as wake-up timer
Crystal Units
32kHz Crystal Unit* For automotive applications, please select a product that conforms to AEC-Q100 or AEC-Q200.
