A programming kit for configuring Epson programmable devices

Download Catalog

F-WRITER is a programming kit for writing configuration data to Epson programmable devices. Simply combine the F-WRITER Shield with an Arduino® UNO R4 Minima to quickly program devices with your required settings in-house, helping streamline product development.

Features

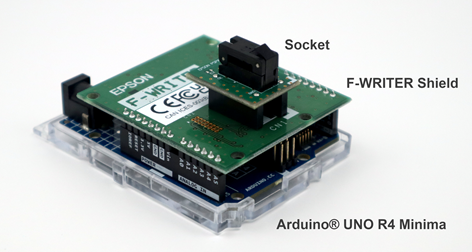

  • Consists of an Epson F-WRITER Shield that mounts on a customer-supplied Arduino UNO R4 Minima.
  • Provides intuitive operation through the dedicated F-WRITER App for Windows 11.
  • Requires only a USB Type-C connection—no separate programmer or external power supply needed.
  • Programs devices individually, making it ideal for low-volume prototyping and evaluation.
  • Accommodates a variety of package sizes with optional SMD sockets.
  • Supports online software and firmware updates, allowing additional products to be added in the future.
  • Automatically generates the corresponding complete part number from the selected settings. This enables a seamless process from configuration verification to placing an order for volume production through an Epson partner.
  • Accepts SMD sockets and blank samples from the previous-generation SG-Writer II kit.

Documents

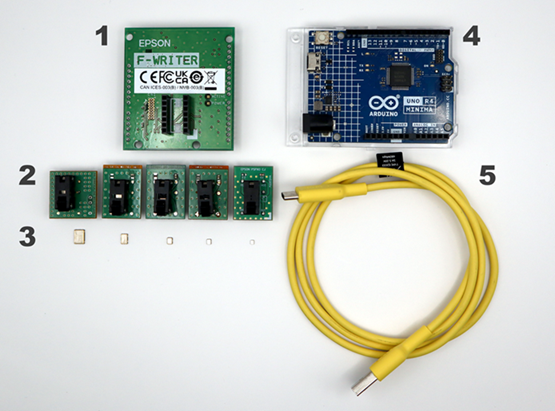

Kit Contents and Required Items

Epson Products:

  • 1. F-WRITER Shield
  • 2. SMD Sockets (sold separately)
  • 3. Programmable Devices (sold separately)

Customer-Supplied Items:

  • 4. Arduino® UNO R4 Minima
  • 5. USB Type-C Cable

Optional SMD Sockets

Model name Product part number
SG-8018CA, SG-8101CA, SG-9101CA Q91PR10W00021
SG-8018CB, SG-8101CB, SG-9101CB Q91PR10W00025
SG-8018CE, SG-8101CE, SG-9101CE Q91PR10W00018
SG-8018CG, SG-8101CG, SG-9101CG,
SG-8200CG, SG-8201CG		 Q91PR10W00024
SG-8200CJ, SG-8201CJ Q91PR10W00030

How-to Video (Coming Soon)

Software

Download F-WRITER App

To download the software, review and accept the Software License Agreement on the next page.

Supported Devices

  • Programmable SPXOs
  • Programmable
    Spread SpectrumSS SPXOs

F-WRITER supports a wide range of programmable crystal oscillators, from cost-effective to low-jitter models, and allows you to program the desired output frequency and function settings.

SG-8018

Model name Product part number
SG-8018CA X1G0055710002, X1G0055710001
SG-8018CB X1G0055810002, X1G0055810001
SG-8018CE X1G0055910002, X1G0055910001
SG-8018CG X1G0056010002, X1G0056010001

SG-8101

Model name Product part number
SG-8101CA X1G0051910002, X1G0051910001
SG-8101CB X1G0052010002, X1G0052010001
SG-8101CE X1G0052110002, X1G0052110001
SG-8101CG X1G0051810002, X1G0051810001

SG-8200

Model name Product part number
SG-8200CG X1G0062010001
SG-8200CJ X1G0062110001

SG-8201

Model name Product part number
SG-8201CG X1G0061910001
SG-8201CJ X1G0059810001

For the SG-9101 Series, F-WRITER supports programming of the spread-spectrum and output-drive settings, making it useful for evaluating EMI-reduction measures.

SG-9101

Model name Product part number
SG-9101CA X1G0053010002, X1G0053010001
SG-9101CB X1G0053110002, X1G0053110001
SG-9101CE X1G0053210002, X1G0053210001
SG-9101CG X1G0052910002, X1G0052910001
