Description

SG2016CBA and SG2520CBA are for automotive and utilize Epson’s new low noise Integer-N PLL technology. They can support the high frequency from 75 MHz to 170 MHz with narrow frequency tolerance of ±15 x 10^-6, wide operating temperature range up to 125 ℃, and low jitter characteristics of 0.6 ps maximum. SG2016CBA and SG2520CBA are ideal for applications that require high frequency, low jitter clocks, such as AD (Autonomous Driving) and ADAS (Advanced Driver Assistance System).

Main features

  - Size:

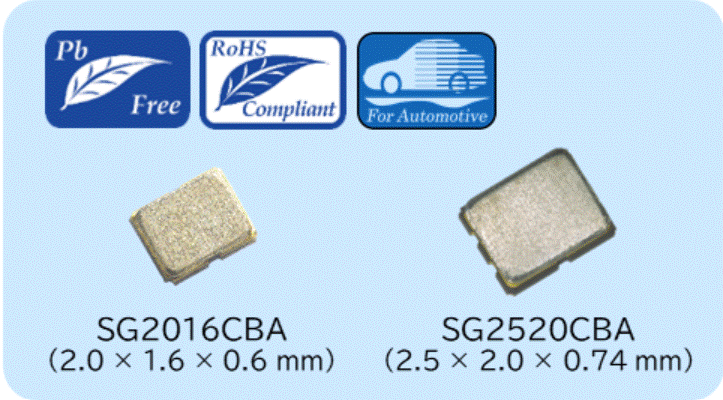

    SG2016CBA: 2.0 x 1.6 x 0.6 mm Typ.
    SG2520CBA: 2.5 x 2.0 x 0.74 mm Typ.
  - Frequency range (fo):
    75 MHz to 170 MHz (5 standard frequencies : 76.8/100/125/150/156.25 MHz)
  - Supply voltage (V_CC):
    1.62 V to 3.63 V
  - Current consumption (I_CC):
    12.5 mA Typ. / 16.6 mA Max. (fo = 156.25 MHz, V_CC = 3.3 V)
  - Frequency tolerance (f_tol):
   Incl 1 year aging  ±15 x 10^-6 (-40 ℃ to +105 ℃), ±25, ±50 x 10^-6 (-40 ℃ to +125 ℃)
   Incl 10 years aging  ±20 x 10^-6 (-40 ℃ to +105 ℃), ±30, ±55 x 10^-6 (-40 ℃ to +125 ℃)
  - Phase jitter (t_PJ):
    0.3 ps Typ., 0.6 ps Max. (Offset freq : 12 kHz to 20 MHz)
