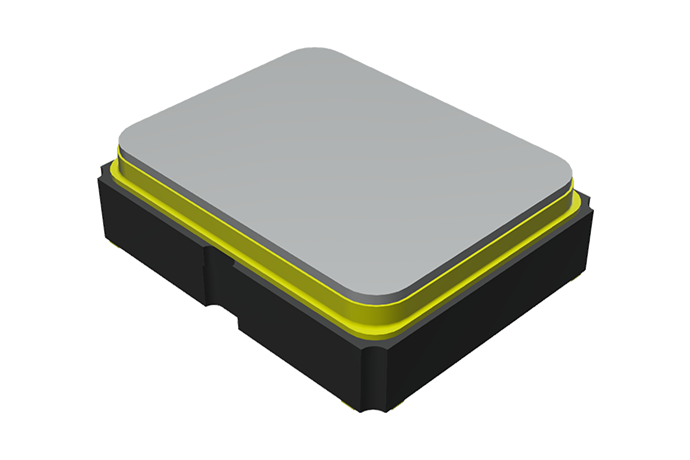

SG-8101CGA
- Programmable Crystal Oscillator for Automotive +125℃ Operation
- Overview
- Spec
- Design Guides
- RoHS/
REACH
etc.
- Related
Info.
- Frequency range : 0.67 MHz to 170 MHz (1 ppm Step)
- Supply voltage : 1.62 V to 3.63 V
- Function : Output enable(OE) or Standby(ST)
- Frequency tolerance, operating temperature
- ±15 × 10-6 (-40°C to +85°C)
- ±20 × 10-6 (-40°C to +105°C)
- ±50 × 10-6 (-40°C to +125°C)
- ±100 × 10-6 (-40°C to +125°C)
- Package : 2.5 × 2.0 (mm)
- PLL technology to enable short lead time
- AEC-Q100 compliant
