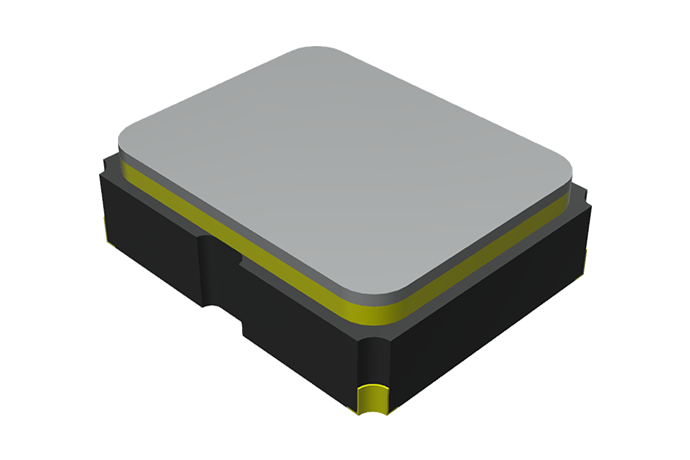

SG-8201CJA
- Programmable Crystal Oscillator for Automotive +125 ℃ Operation
- Overview
- Spec
- Design Guides
- RoHS/
REACH
etc. - Related
Info.
- Frequency range : 1.2 MHz to 170 MHz
- Supply voltage : 1.62 V to 3.63 V
- Function : Output enable(OE/OE) or Standby(ST/ST)
- Frequency tolerance, operating temperature
- ±15 x 10-6 (-40 °C to +105 °C)
- ±25 x 10-6 (-40 °C to +125 °C)
- ±50 x 10-6 (-40 °C to +125 °C) - Phase jitter : 1.1 ps Typ. (fo = 125 MHz)
- Package : 2.0 x 1.6 x 0.6 mm
- AEC-Q100 compliant
