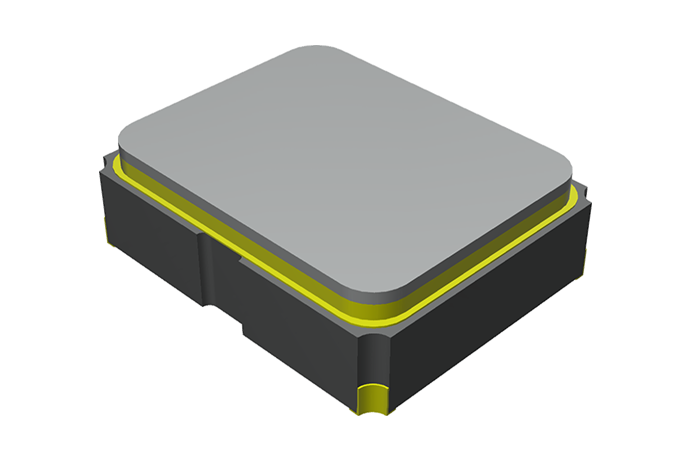

TG2016SLN

  • TCXO / TCXO-Standby / VC-TCXO
  • High Stability
  • Overview
  • Spec
  • Design Guides
  • RoHS/
    REACH
    etc.
  • Related
    Info.
  • Frequency range : 10 MHz to 55.2 MHz
  • Supply voltage : 1.8 V Typ. / 2.8 V Typ. / 3.0 V Typ. / 3.3 V Typ.
  • Frequency / temperature characteristics
    - ±0.5 × 10-6 Max. (-40 °C to +85 °C)
    - ±5.0 × 10-6 Max. (+85 °C to +105 °C)
  • External dimensions : 2.0 × 1.6 × 0.7 mm Max.
  • Application : GPS, RF, Wireless communication devices(LTE, WiMAX, Wi-Fi, W-LAN, IoT others)
  • Feature : 105°C and Standby function
