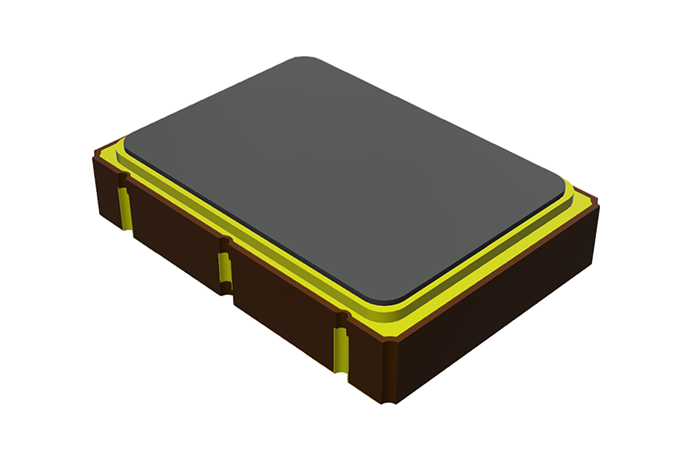

TG-5511CA
- TCXO
- High Stability
- Overview
- Spec
- Design Guides
- RoHS/
REACH
etc. - Related
Info.
- Frequency range : 10 MHz to 54 MHz
- Supply voltage : 3.3 V Typ.
- Frequency / temperature characteristics : ±0.28 × 10-6 Max.
- Free-run accuracy : ±4.6 × 10-6 Max. / 20 years (for Stratum3)
- External dimensions : 7.0 × 5.0 × 1.5 mm (4 pins)
- Application : Network synchronization, BTS, Microwave, Stratum3, SyncE, IEEE1588
- Feature : +105 °C High temp (option), High stability
