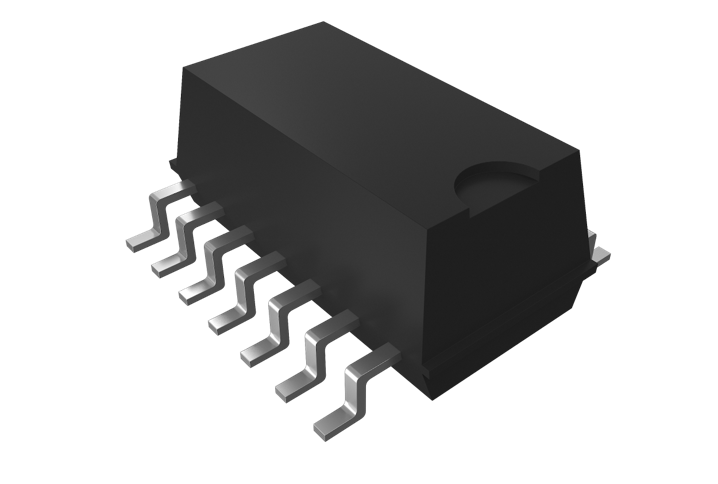

RA-4565SA

  • AEC-Q200
  • SPI Interface
  • Overview
  • Spec
  • Design Guides
  • RoHS/
    REACH
    etc
  • Related
    Info.
  • Built-in 32.768 kHz crystal unit: Factory-adjusted for frequency accuracy
  • Interface Type : 4-wire serial interface
  • Interface voltage range : 1.6 V to 5.5 V
  • Clock supply voltage range : 1.5 V to 5.5 V
    Ta = -40 °C to +125 °C
  • Extended operating temperature range : -40 °C to +125 °C
  • 32.768 kHz Clock/calendar function, auto leap year correction function
  • Applications : Car audio, Car navigation system, Clock, ECU sub clock
  • AEC-Q200 compliant
