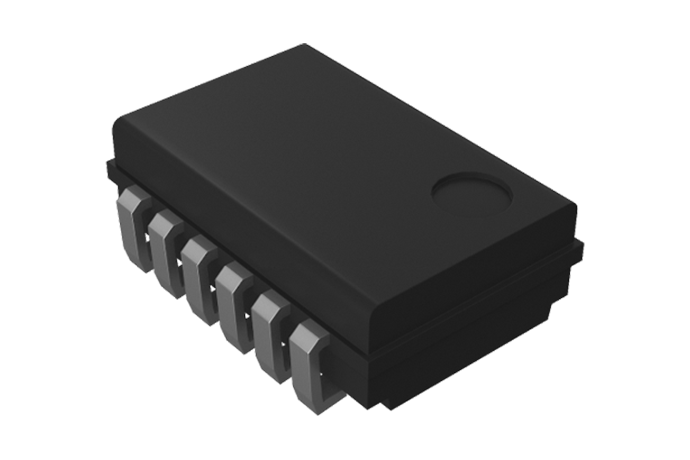

RX-8731LC

  • Built-in EEPROM
  • Unique ID-ROM
  • I2C-Bus Interface
  • Real Time Clock Module
  • Overview
  • Spec
  • Design Guides
  • RoHS/
    REACH
    etc
  • Related
    Info.
  • Built in frequency adjusted 32.768 kHz crystal unit
  • Interface Type : I2C-Bus interface (400kHz)
  • Operating voltage range : 1.7V to 5.5V
  • Wide voltage for timekeeping : 1.3V to 5.5V
  • Low backup current : 0.35µA / 3V (Typ.)
  • 32.768kHz frequency output function : C-MOS output With Control Pin
  • The various functions include full calendar, alarm, timer
