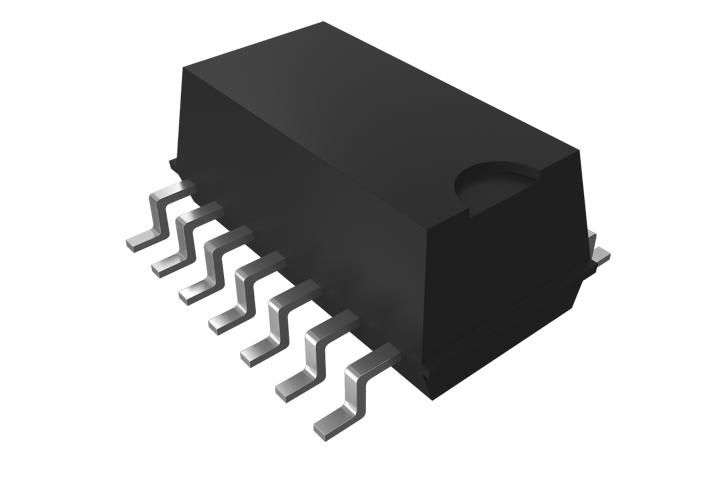

RX-8803SA

  • Built-in 32.768 kHz-DTCXO
  • High stability
  • I2C-Bus Interface
  • Real Time Clock Module
  • Overview
  • Spec
  • Design Guides
  • RoHS/
    REACH
    etc
  • Related
    Info.
  • Built in frequency adjusted 32.768kHz crystal unit and DTCXO.
  • 1/100s resolution Time register
  • Interface Type : I2C-Bus interface (400kHz)
  • Interface voltage range : 1.6V to 5.5V
  • Temp. compensated voltage range : 2.2V to 5.5V
  • Clock supply voltage range : 1.6V to 5.5V
  • Selectable clock output (32.768kHz, 1024Hz, 1Hz)
  • The various functions include full calendar, alarm, timer, EVIN input.
  • Epson prepared Linux driver for development
    Link
    The registered trademark Linux® is used pursuant to a sublicense from LMI(Linux Mark Institute)
