Programmable SPXO SG-8200 series, SG-8201 series
- From standards to high accuracy, low jitter, for wide range of applications -
Overview
The SG-8200 and SG-8201series utilize Epson new low noise fractional-N PLL technology, where the stability has been improved by to 2x and phase jitter has been reduced 1/25th versus the previous generation of Epson programable crystal oscillator. It is ideal for variety of consumer and industrial applications, which requires small form factor and/or operation in harsh environment with wide operating temperature range up to +125°C. This programmable SPXO can be used in small lots and quick turn-around time for any frequency in the range of 1.2 MHz to 170 MHz, contributing to automotive applications from development to mass production.
Series Lineup
For general application and for automotive compliant products are prepared.
1.1 ps Typ. of phase jitter at fo = 125 MHz, can operate accuately even in high temperature environment up to 125°C with tempeture compensated feature. Package size is 2.5mm x 2.0mm x 0.74mm.
Bigger size than 2.5mm x 2.0mm
For general : Standard SG-8200CG / SG-8200CJ
Frequency tolerance : ±50 x 10-6
Specifications
|
Block diagram
Terminal layout

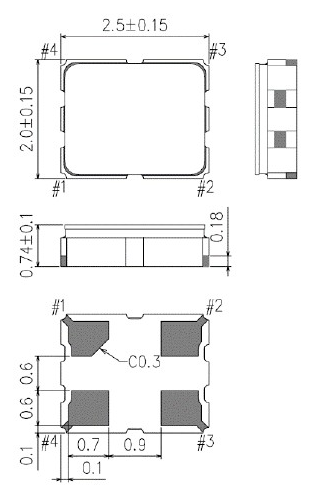

Size |
High accuracy, low jitter : SG-8201CG / SG-8201CJ
Frequency tolerance : ±15 x 10-6
Specifications
|
Block diagram
Terminal layout
Size |
For Automotive : SG-8201CJA
AEC-Q100 compliant
Specifications
|
Block diagram
Terminal layout

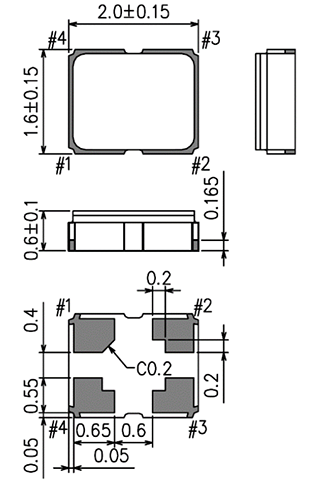

Size |
Features
Fractional-N PLL
Fractional-N PLL enables to program any frequency up to 170 MHz, with 10-6 (1 ppm) accuracy
> PLL can make high frequency and correct the frequency variation for high stability
Temperature Compensation
Temperature Compensation function enables to adjust the temperature variation between -40 °C to +125 °C
> Freq. temp. characteristics of X'tal can be kept small for high stability and wide temperature range
Comparison between Programmable SPXOs
1. Cpmparison by frequency deviation
Compared with high accuracy & low jitter [SG-8201 series] and existing programmable SPXO [SG-8101series], [SG-8201 series] can adjust the temperature variation up to +125°C and has high stability characteristics over a wide temperature range.
2. Comparison by Low Phase Noise/Low Jitter Characteristics
Compared with existing programmable SPXO [SG-8101series], high accuracy & low jitter [SG-8201series] whose phase noise is improved about 30 dBc/Hz at offset frequency from 100 kHz to 1 MHz, and phase jitter is reduced to about 1/40.
| Phase jitter (12 kHz to 5 MHz) |
|
|---|---|
| SG-8101 series | 45.8 ps |
| SG-8201 series | 1.2 ps |
| Phase jitter (12 kHz to 20 MHz) |
|
|---|---|
| SG-8101 series | 43.7 ps |
| SG-8201 series | 1.1 ps |
| Phase jitter (12 kHz to 20 MHz) |
|
|---|---|
| SG-8101 series | 42.3 ps |
| SG-8201 series | 1.5 ps |
Options of each feature
Each function can be selected according to the customer's design
1. OE or ST function
|
Function of current SPXO and SG-820x series #1 pin: OE orST (Active High) |
Added function of SG-820x series #1 pin: OE or ST (Active High) |
|---|---|
|
OE or ST = High -> Output enable OE or ST = Low -> Output disable |
OE or ST = High -> Output enable OE or ST = Low -> Output disable |
 |
 |
2. Selectable from 4 type of Rise/Fall time
| tr / tf | tr / tf | tr / tf | tr / tf |
|---|---|---|---|
| B:Faster | 2.0 ns Max. | C:Fast | 2.5 ns Max. |
 |
 |
||
| D:Slow | 4.0 ns Max. | E:Slower | 6.0 ns Max. |
 |
 |
||
Note:
SG-8201 series #1pin specification and function are different from our existing SPXO and programmable SG-9001series. For more information, click here.
Comparison to fundamental SPXO
High accuracy & low jitter [SG-8201series] , existing programmable SPXO[SG-8101 / SG-8018 series] and fundamentalSPXO.
Compare to other two, SG-8201series 's features are:
- High frequency
- Operation temperature +125 °C Max
- Low jitter PLL
Comparion by specifications to fundamental SPXO
| Item | SG-8200CG/CJ | SG-8201CG/CJ | SG-8018CG | SG-8101CG | SG-210STF | SG2016CAN | |
|---|---|---|---|---|---|---|---|
| Frequency (fo) | 1.2 MHz to 170 MHz | 0.67 MHz to 170 MHz | 4 MHz to 72 MHz / 20 freq. | ||||
| Technology | PLL(Low noise/jitter) Programmable SPXO |
PLL(Low power) Programmable SPXO |
Fundamental Fixed SPXO |
||||
| Power Supply(VCC) | 1.62 V to 3.63 V | 1.62 V to 3.63 V | 1.6 V, 1.71 V, 2.25 V to 3.63 V | ||||
| Operating Temperature | +125 ℃ Max. | +105 ℃ Max. | +105 ℃ Max. | ||||
| Frequency Tolerance (incl 1year aging) |
-40 ℃ to +105 ℃ | - | ±15 x 10-6 | ±50 x 10-6 | ±20 x 10-6 | ±50 x 10-6 | |
| -40 ℃ to +125 ℃ | ±50 x 10-6 | ±25 x 10-6 | - | - | |||
| Phase Jitter (fo = 125 MHz) |
VCC = 1.8 V | 1.1 ps Typ. | 43.8 ps Typ., 74.1 ps Max. | 0.25 ps Typ(fo = 25 MHz) 0.25 ps Typ(fo = 50 MHz) |
|||
| VCC = 2.5 V | 44.0 ps Typ., 73.8 ps Max. | ||||||
| VCC = 3.3 V | 46.0 ps Typ., 68.6 ps Max. | ||||||
| Current Consumption | fo = 25 MHz | 7.5 mA Max. | 4.5 mA Max. | 2.7 mA Max. | |||
| fo = 125 MHz | 12.4 mA Max. | 6.8 mA Max. | - | ||||
| Rise/Fall time (Default) |
6.0 ns Max. (fo ≤ 50 MHz) 4.0 ns Max. (50 MHz < fo ≤ 75 MHz) 2.5 ns Max. (75 MHz < fo ≤ 125 MHz) 2.0 ns Max. (fo > 125 MHz) |
10.0 ns Max. (Slow, fo ≤ 20 MHz) 6.0 ns Max. (fo ≤ 40 MHz) 3.0 ns Max. (fo > 40 MHz) |
3.0 ns Max. (VCC = 2.5 V, 3.3 V) 3.5 ns Max. (VCC = 1.8 V) |
||||
| Output | CMOS | CMOS | CMOS | ||||
| Size | CG:2.5 x 2.0 x 0.74t mm CJ:2.0x1.6x0.6 mm |
2.5 x 2.0 x 0.7t mm | 2.5 x 2.0 x 0.8t mm | 2.0 x 1.6 x 0.7t mm | |||
Comparion by specifications to fundamental SPXO (Automotive)
High accuracy & low jitter [SG-8201CJA] , existing programmable SPXO[SG-8101CGA] and fundamental SPXO.
Compare to other two, SG-8201CJA 's features are:
- High frequency
- Operation temperature +125 °C Max
- Low jitter PLL
- Compact size
- AEC-Q100 compliant
| Item | SG-8201CJA | SG-8101CGA | SG2016/2520CAA | SG2016/2520CAA | |
|---|---|---|---|---|---|
| Frequency (fo) | 1.2 MHz to 170 MHz | 0.67 MHz to 170 MHz | 8 MHz to 54 MHz | 2 MHz to 49.999 MHz | |
| Technology | PLL(Low noise/jitter) Programmable SPXO |
PLL(Low power) Programmable SPXO |
Fundamental Fixed SPXO |
Fundamental Fixed SPXO |
|
| Power Supply(VCC) | 1.62 V to 3.63 V | 1.62 V to 3.63 V | 1.6 V, 1.71 V, 2.25 V to 3.63 V | 1.6 V to 3.6 V | |
| Operating Temperature | +125 ℃ Max. | +125 ℃ Max. | +125 ℃ Max. | +125 ℃ Max. | |
| Frequency Tolerance (incl 1year aging) |
-40 ℃ to +105 ℃ | ±15 x 10-6 | ±20 x 10-6 | ±50 x 10-6 | ±50 x 10-6 |
| -40 ℃ to +125 ℃ | ±25 x 10-6 | ±50 x 10-6 | ±100 x 10-6 | ±100 x 10-6 | |
| Phase Jitter (fo = 125 MHz) |
VCC = 1.8 V | 1.1 ps Typ. | 43.8 ps Typ., 74.1 ps Max. | 0.25 ps Typ(fo = 25 MHz) 0.25 ps Typ(fo = 50 MHz) |
0.25 ps Typ(fo = 25 MHz) 0.25 ps Typ(fo = 50 MHz) |
| VCC = 2.5 V | 44.0 ps Typ., 73.8 ps Max. | ||||
| VCC = 3.3 V | 46.0 ps Typ., 68.6 ps Max. | ||||
| Current Consumption |
fo = 25 MHz | 7.5 mA Max. | 4.5 mA Max. | 2.7 mA Max. | 4.0 mA Max. |
| fo = 125 MHz | 12.4 mA Max. | 6.8 mA Max. | - | - | |
| Rise/Fall time (Default) |
6.0 ns Max. (fo ≤ 50 MHz) 4.0 ns Max. (50 MHz < fo ≤ 75 MHz) 2.5 ns Max. (75 MHz < fo ≤ 125 MHz) 2.0 ns Max. (fo > 125 MHz) |
10.0 ns Max.(Slow, fo ≤ 20 MHz) 6.0 ns Max. (fo ≤ 40 MHz) 3.0 ns Max. (fo > 40 MHz) |
3.0 ns Max. (VCC = 2.5 V, 3.3 V) 3.5 ns Max. (VCC = 1.8 V) |
7.0 ns Max. | |
| Output | CMOS | CMOS | CMOS | CMOS | |
| Size | 2.0 x 1.6 x 0.6t mm | 2.5 x 2.0 x 0.7t mm | SG2016CAA: 2.0 x 1.6 x 0.7t mm SG2520CAA: 2.5 x 2.0 x 0.8t mm |
2.5 x 2.0 x 0.8t mm | |
| AEC | AEC-Q100 | AEC-Q100 | AEC-Q200 | AEC-Q200 | |
Comparion by specifications to fundamental SPXO at phase jitter
Compared with our fundamental SPXO (i.e.SG-210STF and SG-210SCH*), fundamental SPXO shows lower phase noise/jitter characteristics.
| Phase jitter (12 kHz to 5 MHz) |
|
|---|---|
| SG-210STF | 0.2 ps |
| SG-8201 series | 1.2 ps |
| Phase jitter (12 kHz to 20 MHz) |
|
|---|---|
| SG-210SCH | 0.25 ps |
| SG-8201 series | 1.1 ps |
| Phase jitter (12 kHz to 5 MHz) |
|
|---|---|
| SG-210SCH | 0.28 ps |
| SG-8201 series | 1.5 ps |
