Automotive Programmable SPXO

Overview

Epson automotive programmable SPXO utilize in-house IC and compliant to AEC-Q100.
High accuracy and low jitter with fractional PLL technology [SG-8201CJA] and protection against noise with Spread Spectrum function Programmable SPXO [SG-9101 CGA]. For both, it is able to program required frequency at customer side with programming tool of our Programmable Oscillator products. This programmable SPXO can be used in small lots and quick turn-around time for any frequency in the range of 1.2 MHz to 170 MHz, contributing to automotive applications from development to mass production.

Lineup

Compact, high accuracy and low jitter "SG-8201CJA"

- AEC-Q100 compliant, utilize our in-house IC
- Low jitter 1.1 ps Typ. at fo = 125 MHz
- ±15 x 10-6 (to +105 ℃) / ±25 x 10-6 (to +125 ℃) with temperature compensated feature
- Frequency range :1.2 MHz to 170 MHz
- can be used in small lots and quick turn-around time
- Compact size: 2.0 x 1.6 mm

Item Specifications
Frequency(fo) 1.2 MHz to 170 MHz
Output CMOS
Supply voltage(VCC) 1.62 V to 3.63 V
Frequency tolerance/
Operation temperature		 ±15 x 10-6 / -40 ℃ to +105 ℃
±25 x 10-6 / -40 ℃ to +125 ℃
±50 x 10-6 / -40 ℃ to +125 ℃
* Including includes Initial frequency tolerance, Frequency / temperature characteristics, Frequency / voltage coefficient, Frequency / load coefficient. and Aging (+25 ℃, First year)
Current consumption 7.5 mA Max.(fo = 25 MHz)
12.4 mA Max.(fo = 125 MHz)
Symmetry 45 % to 55 %
Rise/Fall time 2.0 ns Max.(fo > 125 MHz)
2.5 ns Max.(75 MHz < fo ≤ 125 MHz)
4.0 ns Max.(50 MHz < fo ≤ 75 MHz)
6.0 ns Max.(fo ≤ 50 MHz)
Phase jitter
(12kHz to 20MHz)		 1.1 ps Typ.(fo = 125 MHz)
Function Output enable or Stand-by

Block diagram

Check product page

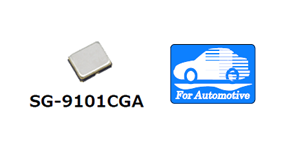

Protection against noise - Spread Spectrum function "SG-9101CGA"

- programmable SPXO with Spread Spectrum (SS) function to reduce EMI
- SS options are selectable by youeselves to support each design
- It is able to program any frequency and SS options by yourselves with programming tool ( SG-Writer II )
- AEC-Q100 compliant
> Spread Spectrum options <
Spread width:6 types
Spread type: 2 types,
odulation frequency: 4 types
Spread profile: 3 types

Item Specifications
Frequency(fo) 0.67 MHz to 170 MHz
Supply voltage 1.62 V to 3.63 V
Frequency tolerance/
Operation temperature		 ±50 x 10-6 / -40 ℃ to +105 ℃
±100 x 10-6 / +105 ℃ to +125 ℃
* Including includes Initial frequency tolerance, Frequency / temperature characteristics, Frequency / voltage coefficient, Frequency / load coefficient. and Aging(+25 °C, First year)
Current consumption 3.8 mA Max.(fo = 20 MHz)
8.4 mA Max.(fo = 170 MHz)
Function Output enable (OE)
or Standby (ST))
Package size 2.5 x 2.0 mm

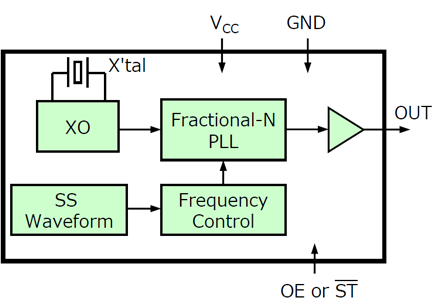

Block diagram

Check product page

Feature

  • - Automotive grade quality AEC-Q100 compliant

    High automotive quality standard in all processes. (e.g. Design, Manufacturing, Process Control)

  • - High frequency stability under a high temperature condition up to 125 °C

    This product achieve high frequency stability
    Note:
    25 ppm max during the temperature range from -40 ℃ to 125 ℃ due to IC's temperature compensation function
    Frequency stability includes initial frequency tolerance, temperature variation, supply voltage variation, reflow drift,load drift and aging (+25 ℃, 1 year).

  • - Achieve low jitter performance compared with our existing product

    Achieve 1.1 ps typical phase jitter (12 kHz to 20 MHz) by utilizing Epson new in-house IC (in case of 125 MHz)

  • - Enable to output any frequency up to 170 MHz by programmable technology

    SG-8201CJA can output any frequency in the range of 1.2 MHz to 170 MHz

  • - 2.0 x 1.6 mm small size

SG-8201CJA Feature Introduction

SG-8201CJA Contribution to Automotive Applications

1. High frequency stability under wide temperature range by temperature compensation function

Compared with existing SPXO SG-8101CGA, this product can adjust the temperature variation up to +125 ℃ and has high stability characteristics over a wide temperature range. SG-8201CJA can achieve stable frequency tolerance even under tough temperature condition (-40 ℃ to +125 ℃) which is required by various automotive applications.

2. Low jitter by improving in-house IC performance

Compared with existing SPXO SG-8101CGA, phase noise is improved about 30 dBc/Hz at offset frequency from 100 kHz to 1 MHz, and phase jitter is reduced to about 1/40. SG-8201CJA achieve lower jitter by reducing noise level. It can contribute to the improvement of sensor detection range and resolution.

  Phase jitter
(12 kHz to 5 MHz)
SG-8101CGA 43.7 ps​
SG-8201CJA 1.1 ps

3. High output frequency by PLL technology

Internal PLL technology enables programming any frequency up to 170 MHz by multiplying the internal crystal's frequency. SG-8201CJA can support high-speed telecommunication which requires higher output frequency.

Item SG-8201CJA SG-8101CGA SG2016/2520CAA SG-210S*BA
Frequency (fo) 1.2 MHz to 170 MHz 0.67 MHz to 170 MHz 8 MHz to 54 MHz 2 MHz to 49.999 MHz
Technology PLL(Low noise/jitter)
Programmable SPXO		 PLL(Low power)
Programmable SPXO		 Fundamental
Fixed SPXO		 Fundamental
Fixed SPXO
Power Supply(VCC) 1.62 V to 3.63 V 1.62 V to 3.63 V 1.6 V, 1.71 V, 2.25 V to 3.63 V 1.6 V to 3.6 V
Operating Temperature +125 ℃ Max. +125 ℃ Max. +125 ℃ Max. +125 ℃ Max.
Frequency Tolerance
(incl 1year aging)		 -40 ℃ to +105 ℃ ±15 x 10-6 ±20 x 10-6 ±50 x 10-6 ±50 x 10-6
-40 ℃ to +125 ℃ ±25 x 10-6 ±50 x 10-6 ±100 x 10-6 ±100 x 10-6
Phase Jitter
(fo = 125 MHz)		 VCC = 1.8 V 1.1 ps Typ. 43.8 ps Typ., 74.1 ps Max. 0.25 ps Typ(fo = 25 MHz)
0.25 ps Typ(fo = 50 MHz)		 0.25 ps Typ(fo = 25 MHz)
0.25 ps Typ(fo = 50 MHz)
VCC = 2.5 V 44.0 ps Typ., 73.8 ps Max.
VCC = 3.3 V 46.0 ps Typ., 68.6 ps Max.
Current
Consumption		 fo = 25 MHz 7.5 mA Max. 4.5 mA Max. 2.7 mA Max. 4.0 mA Max.
fo = 125 MHz 12.4 mA Max. 6.8 mA Max. - -
Rise/Fall time
(Default)		 6.0 ns Max. (fo ≤ 50 MHz)
4.0 ns Max. (50 MHz < fo ≤ 75 MHz)
2.5 ns Max. (75 MHz < fo ≤ 125 MHz)
2.0 ns Max. (fo > 125 MHz) 		10.0 ns Max.(Slow, fo ≤ 20 MHz)
6.0 ns Max. (fo ≤ 40 MHz)
3.0 ns Max. (fo > 40 MHz) 		3.0 ns Max. (VCC = 2.5 V, 3.3 V)
3.5 ns Max. (VCC = 1.8 V)		 7.0 ns Max.
Output CMOS CMOS CMOS CMOS
Size 2.0 x 1.6 x 0.6t mm 2.5 x 2.0 x 0.7t mm SG2016CAA: 2.0 x 1.6 x 0.7t mm
SG2520CAA: 2.5 x 2.0 x 0.8t mm		 2.5 x 2.0 x 0.8t mm
AEC AEC-Q100 AEC-Q100 AEC-Q200 AEC-Q200
